过程工程学报 ›› 2026, Vol. 26 ›› Issue (9): 929-947.DOI: 10.12034/j.issn.1009-606X.225277
余正伟1,2(
), 韩佳欣1, 陈良军1,2, 陆伟文1, 章新宇1, 袁溢1, 龙红明1,2()
收稿日期:2025-10-30
修回日期:2026-01-14
出版日期:2026-02-13
发布日期:2026-09-28
通讯作者:
龙红明 yuzhengw@ahut.edu.cn;yaflhm@126.com
作者简介:余正伟，副教授，研究方向为智能冶金，E-mail: yuzhengw@ahut.edu.cn；基金资助:
Zhengwei YU1,2(), Jiaxin HAN1, Liangjun CHEN1,2, Weiwen LU1, Xinyu ZHANG1, Yi YUAN1, Hongming LONG1,2()
Received:2025-10-30
Revised:2026-01-14
Online:2026-02-13
Published:2026-09-28
Contact:
Hongming LONG yuzhengw@ahut.edu.cn;yaflhm@126.com
摘要：
(1)烧结工序智能化升级对推动流程工业绿色低碳转型具有重要意义，精准可靠的感知技术是实现烧结过程智能调控与优化的基础。
(2)综述了烧结过程先进感知技术的研究进展，重点分析原料成分、水分、烧结终点与漏风率等关键参数的检测方法。
(3)未来烧结感知体系应面向复杂工况实现多源融合与智能自校准，提升系统稳定性与鲁棒性，推动烧结过程向智能化、绿色化、高效化发展。
中图分类号:
余正伟, 韩佳欣, 陈良军, 陆伟文, 章新宇, 袁溢, 龙红明. 烧结过程先进感知技术的研究现状与展望[J]. 过程工程学报, 2026, 26(9): 929-947.
Zhengwei YU, Jiaxin HAN, Liangjun CHEN, Weiwen LU, Xinyu ZHANG, Yi YUAN, Hongming LONG. Research status and prospects of advanced sensing technologies in the sintering process[J]. The Chinese Journal of Process Engineering, 2026, 26(9): 929-947.

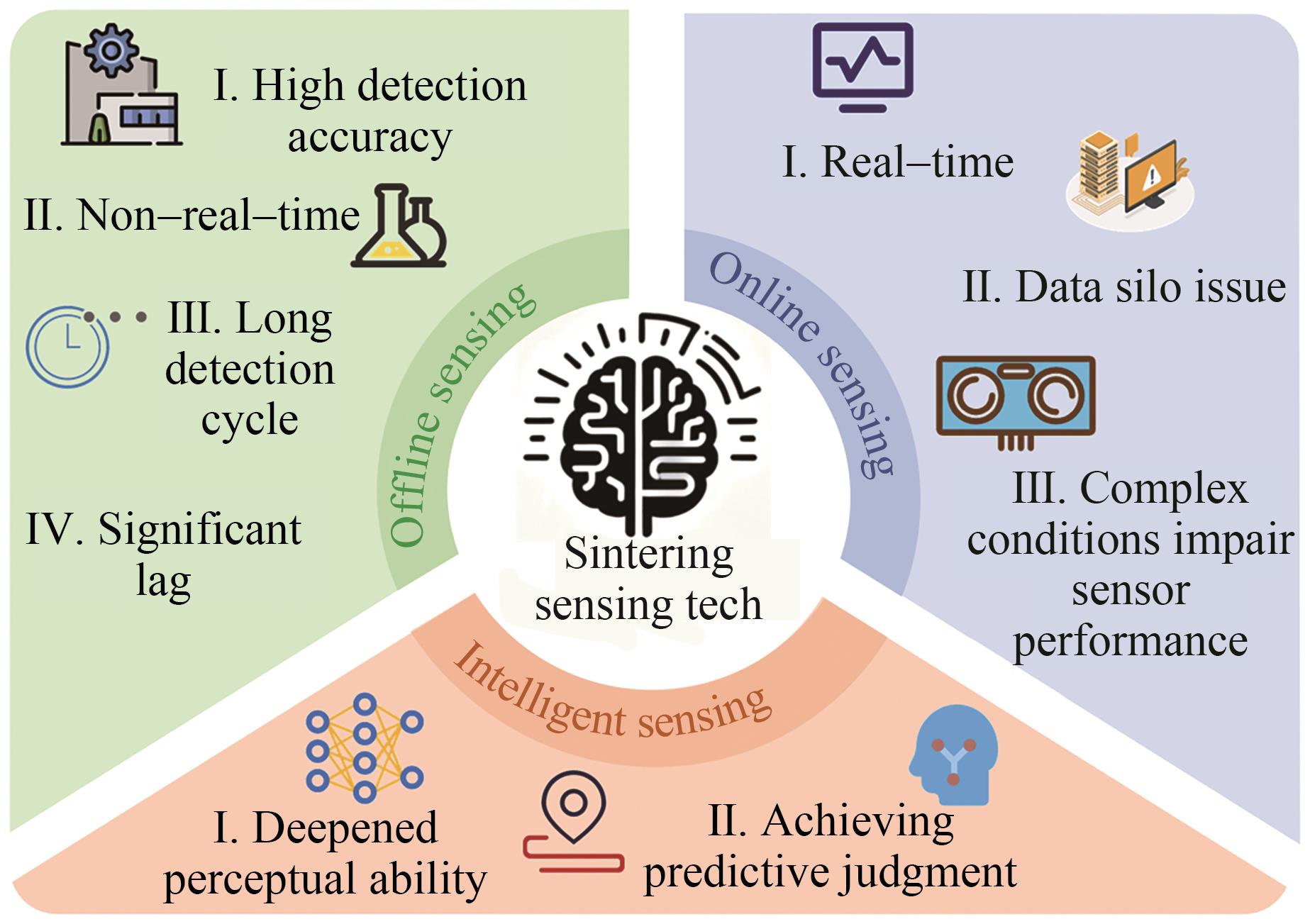

图1 烧结感知技术发展阶段特征图
Fig.1 Schematic diagram of development stage characteristics of sintering sensing technology

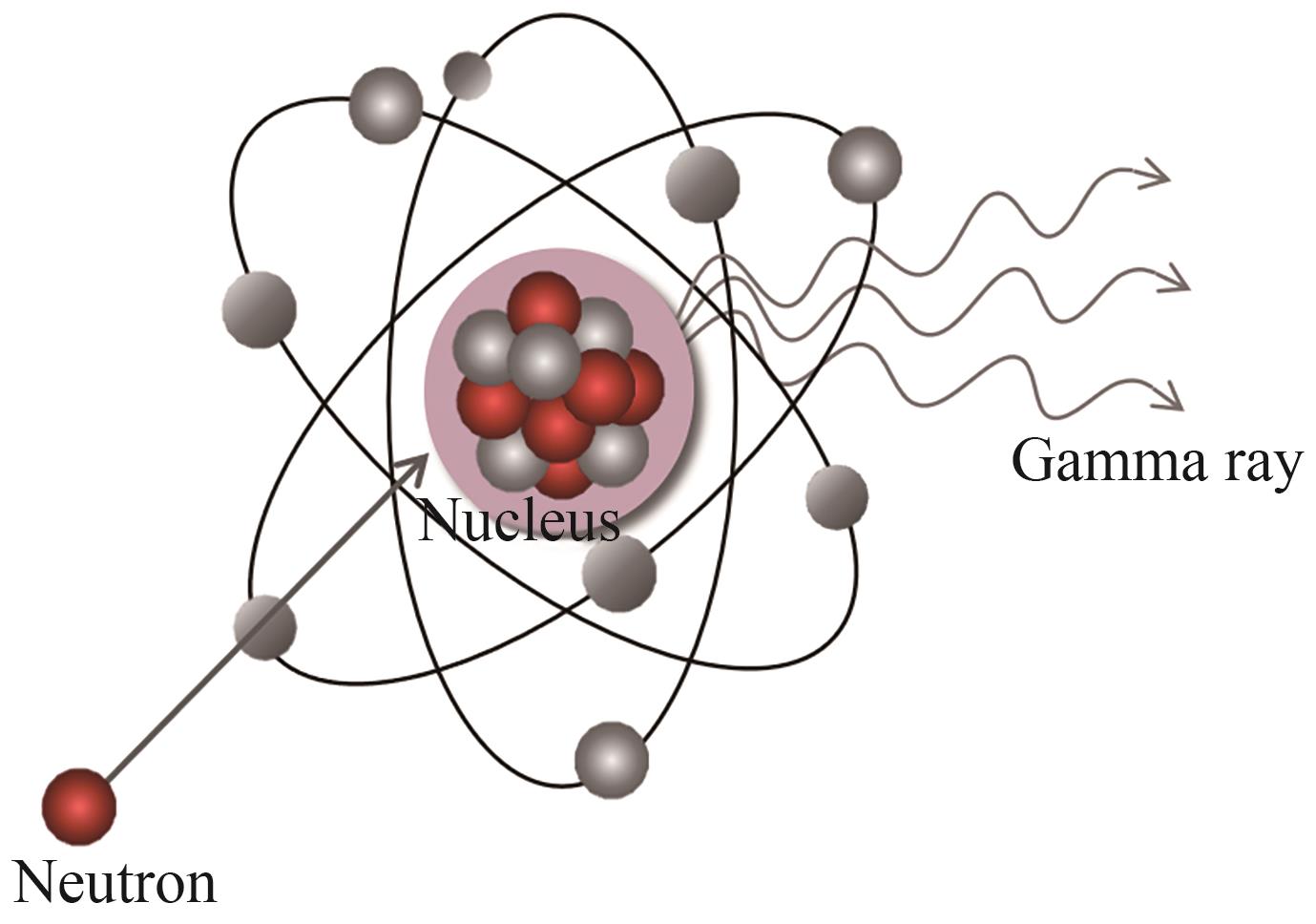

图2 PGNAA原理图
Fig.2 Schematic diagram of PGNAA principle

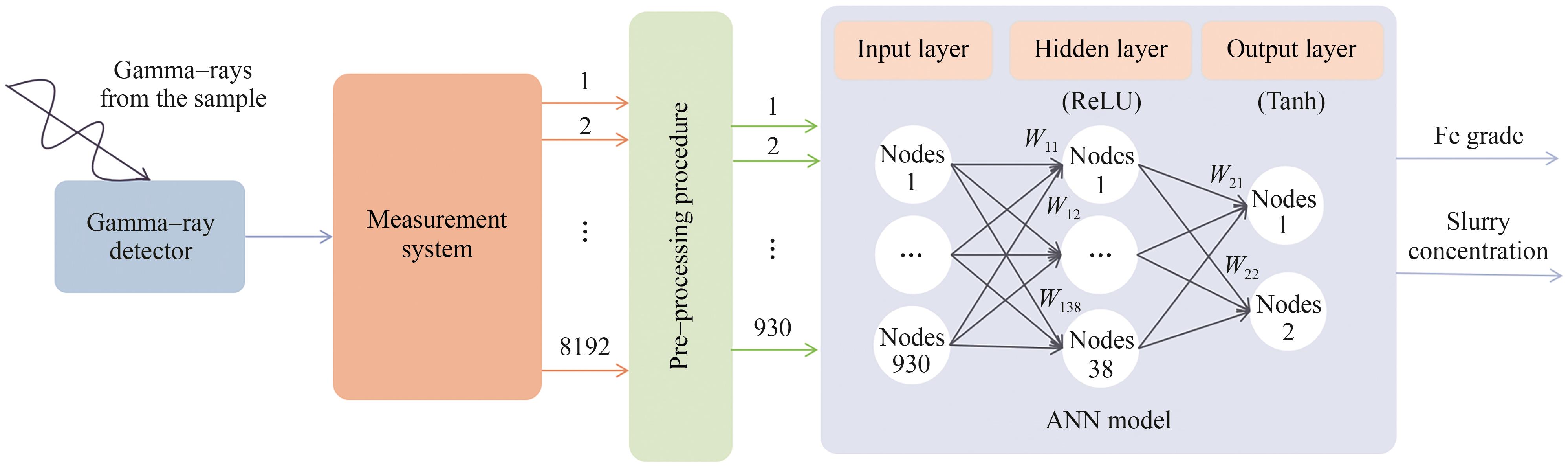

图3 ANN模型与PGNAA分析系统架构示意图[14]
Fig.3 Architecture diagram of ANN model and PGNAA analysis system[14]

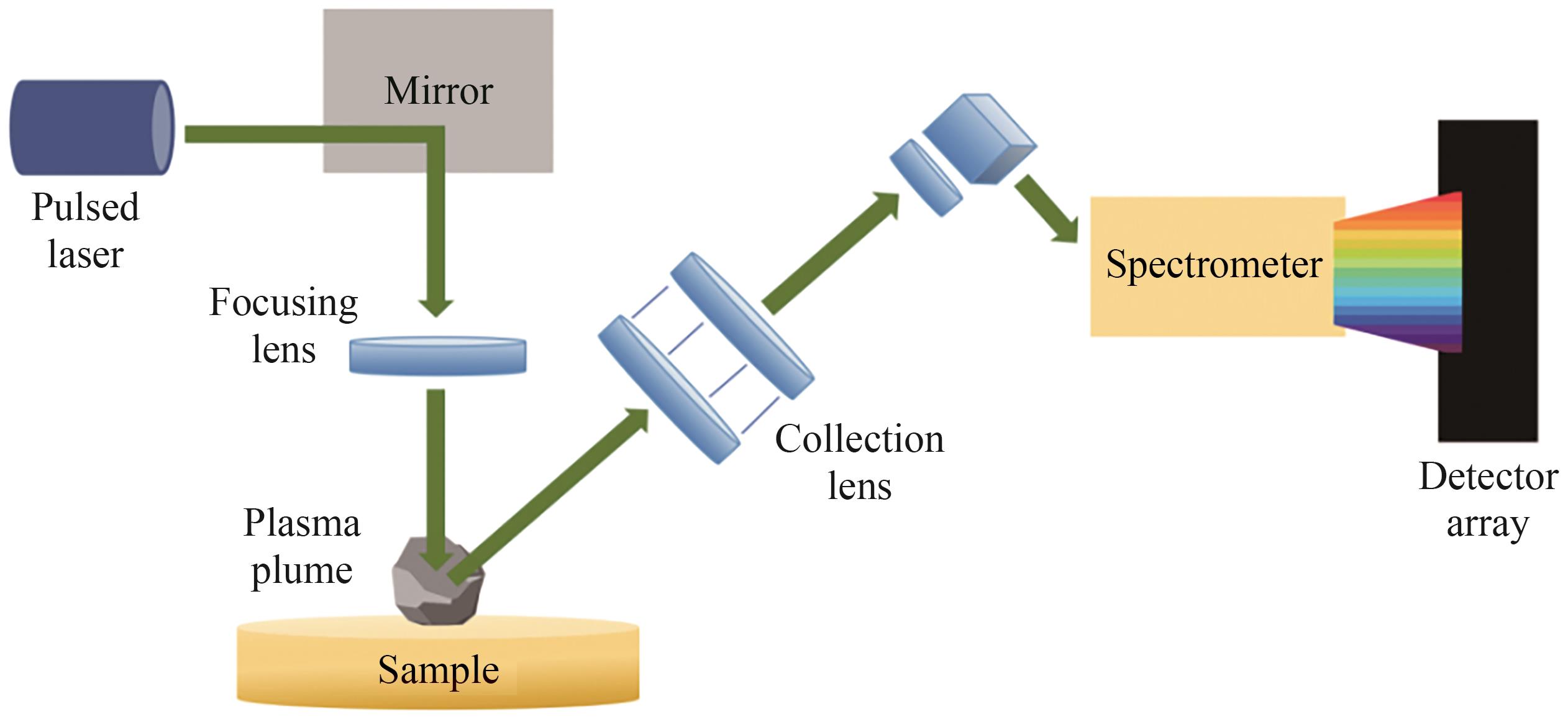

图4 LIBS检测原理图
Fig.4 Schematic diagram of LIBS detection principle

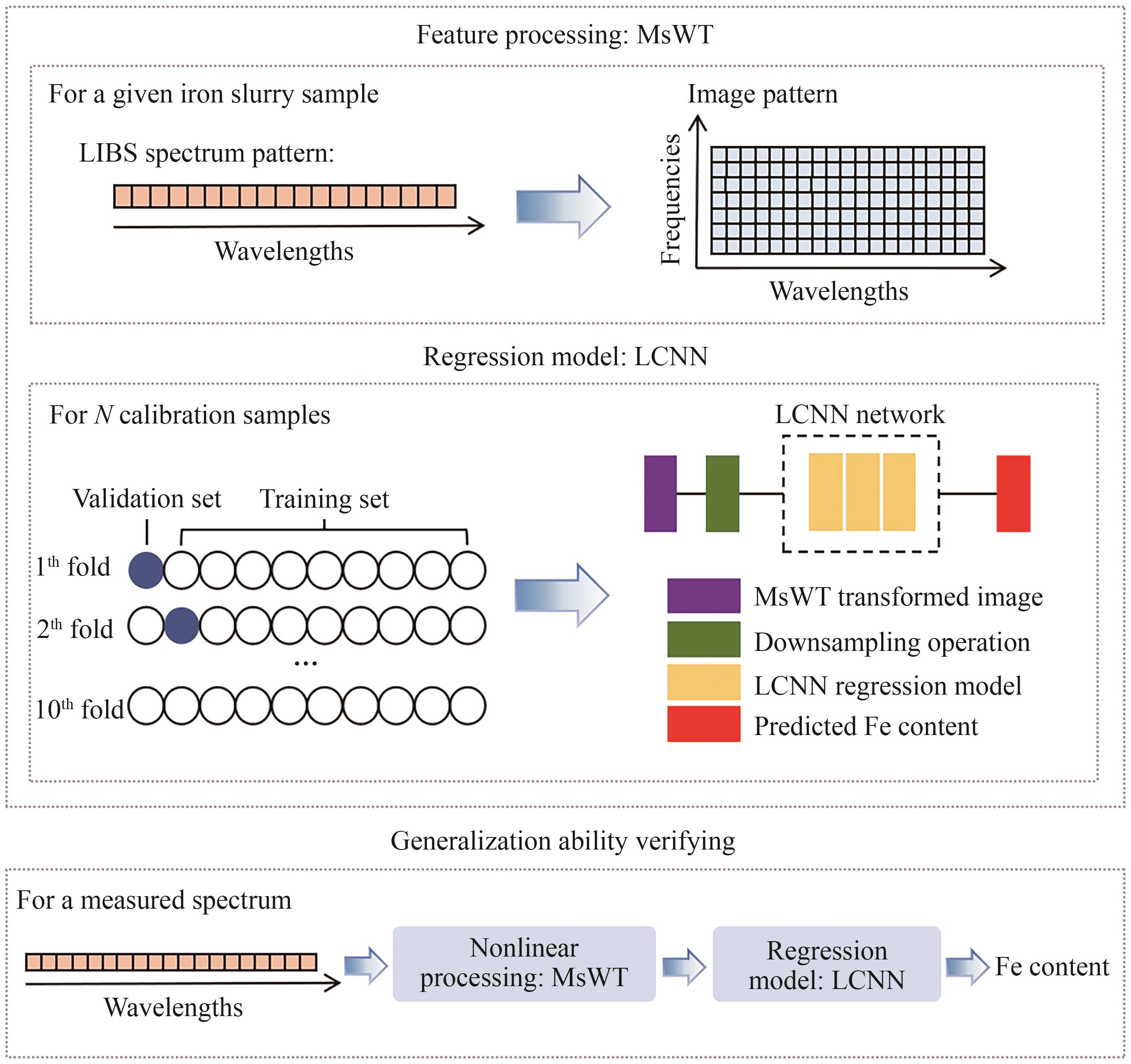

图5 MsWT-LCNN方法的示意图[25]
Fig.5 Schematic diagram of the MsWT-LCNN method[25]

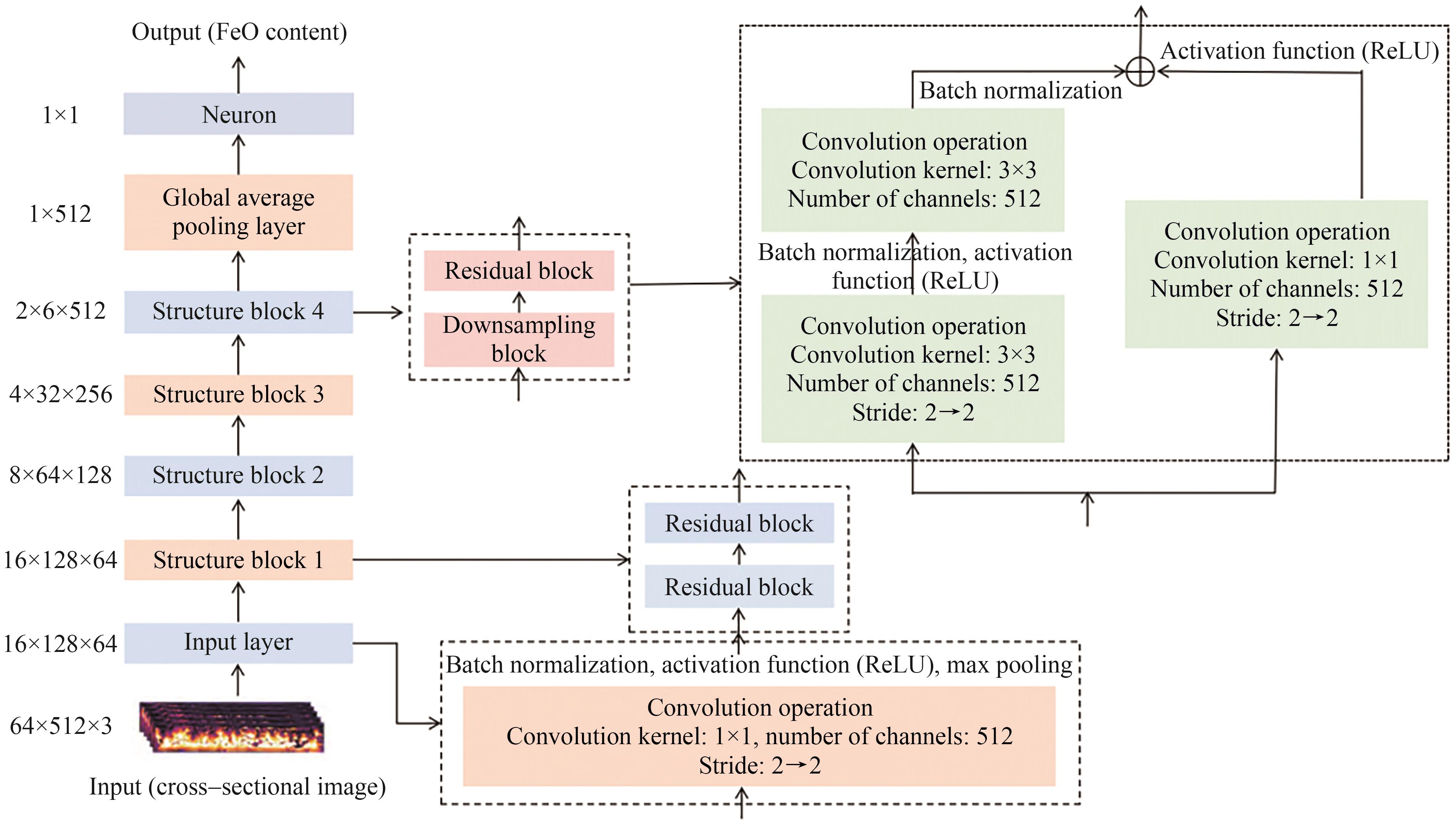

图6 改进ResNet-18网络结构[34]
Fig.6 Improved ResNet-18 network structure[34]
| Model method | Model advantages and disadvantages | Ref. |
|---|---|---|
| Image recognition+fuzzy classification | Accurate FeO determination with 85% hit rate; sensitive to site interference and material variations | [ |
| Infrared thermography+a three-layer BP neural network | Monitors FeO content with stability improving from 84% to 92% within ±1.0%; becomes unstable above 60℃ | [ |
| Improved ResNet-18 prediction model | Achieves 91.2% hit rate within ±0.5%; slightly lower training accuracy than original ResNet-18 | [ |
| Improved Darknet-19 model+time-window statistics | Enables online sensing and adaptive learning of FeO; accuracy within ±0.5% is 82.5% | [ |
| Bi-LSTM+MIV feature selection | Achieves 90.2% accuracy within ±8%; predictions are indirect and lack interpretability | [ |
表1 基于红外热像的烧结矿FeO含量预测方法对比
Table 1 Comparison of infrared-based FeO content prediction methods
| Model method | Model advantages and disadvantages | Ref. |
|---|---|---|
| Image recognition+fuzzy classification | Accurate FeO determination with 85% hit rate; sensitive to site interference and material variations | [ |
| Infrared thermography+a three-layer BP neural network | Monitors FeO content with stability improving from 84% to 92% within ±1.0%; becomes unstable above 60℃ | [ |
| Improved ResNet-18 prediction model | Achieves 91.2% hit rate within ±0.5%; slightly lower training accuracy than original ResNet-18 | [ |
| Improved Darknet-19 model+time-window statistics | Enables online sensing and adaptive learning of FeO; accuracy within ±0.5% is 82.5% | [ |
| Bi-LSTM+MIV feature selection | Achieves 90.2% accuracy within ±8%; predictions are indirect and lack interpretability | [ |

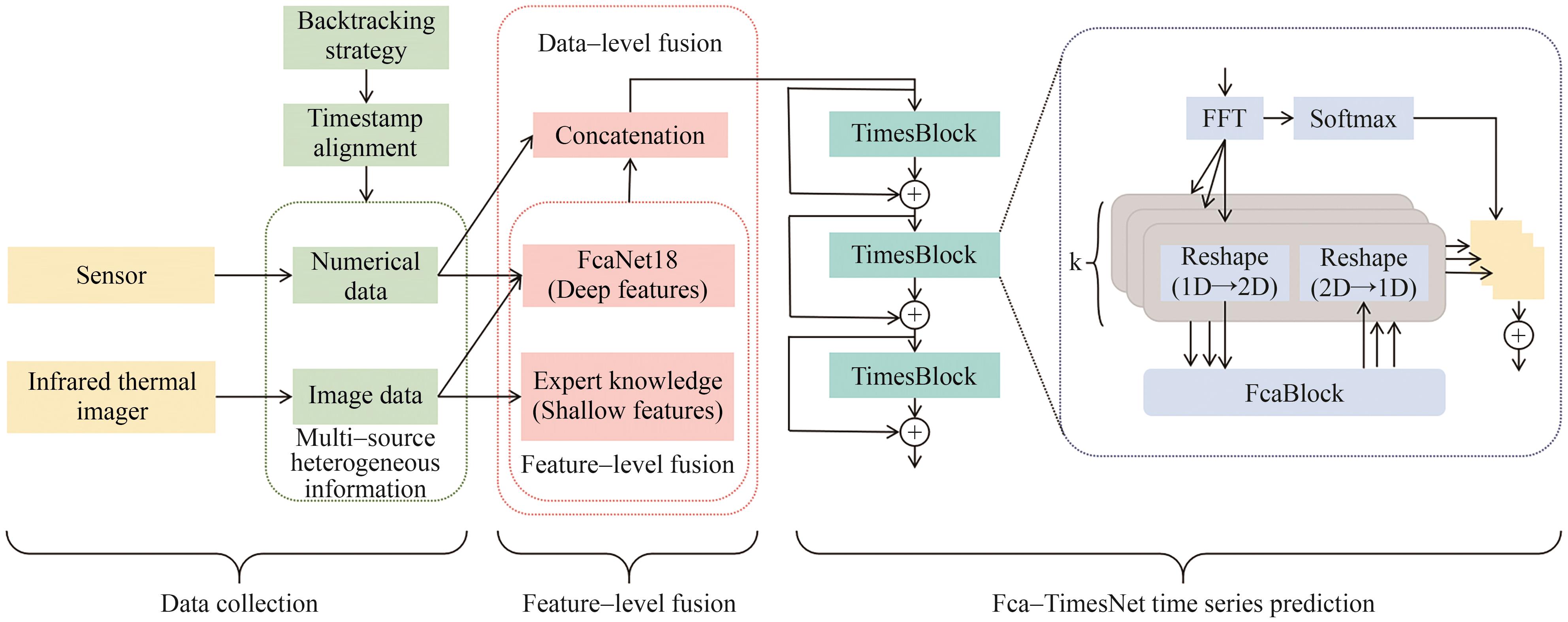

图7 FeO预测的多源数据融合与时序模型架构图[40]
Fig.7 Architecture diagram of multi-source fusion and temporal model for FeO prediction[40]
| Sensing technology | Advantage | Disadvantage | Applicability |
|---|---|---|---|
| PGNAA | Non-destructive; simultaneous multi-element analysis | Susceptible to environmental interference; high cost and complexity | For multi-element monitoring and closed-loop control of sinter mix composition |
| LIBS | Minimal sample preparation; qualitative & quantitative multi-element analysis | Matrix effects and self-absorption limit quantitative accuracy | For rapid laboratory screening or offline spot analysis of sinter products |
| NIR | High reproducibility; real-time monitoring of specific components | Reliant on calibration models; insensitive to traces | For online monitoring of moisture and carbon content in the sintering mix |
| Sinter end image analysis | High-precision, non-contact FeO estimation; automated | Limited to FeO; poor generalization and interpretability | For online estimation of FeO as an indicator of sinter end-point and quality |
表2 烧结物料成分感知技术对比
Table 2 Comparison of sintering materials composition sensing technologies
| Sensing technology | Advantage | Disadvantage | Applicability |
|---|---|---|---|
| PGNAA | Non-destructive; simultaneous multi-element analysis | Susceptible to environmental interference; high cost and complexity | For multi-element monitoring and closed-loop control of sinter mix composition |
| LIBS | Minimal sample preparation; qualitative & quantitative multi-element analysis | Matrix effects and self-absorption limit quantitative accuracy | For rapid laboratory screening or offline spot analysis of sinter products |
| NIR | High reproducibility; real-time monitoring of specific components | Reliant on calibration models; insensitive to traces | For online monitoring of moisture and carbon content in the sintering mix |
| Sinter end image analysis | High-precision, non-contact FeO estimation; automated | Limited to FeO; poor generalization and interpretability | For online estimation of FeO as an indicator of sinter end-point and quality |
| Detection method | Advantage | Disadvantage | Applicability |
|---|---|---|---|
| Neutron method | Non-contact, fast response, not affected by color or morphology | Radioactive, potential safety hazards | Suitable for high-precision detection under laboratory conditions |
| Microwave method | Non-contact, fast response | Sensitive to changes in material composition | Suitable for production environments where material composition is relatively stable |
| Near-infrared spectroscopy | Non-contact, fast response, high detection accuracy | Easily affected by material color and water vapor | Applicable to various sintering production lines, but environmental interference must be controlled |
表3 烧结混合料水分在线检测方法对比
Table 3 Comparison of online detection methods for sintering mix moisture
| Detection method | Advantage | Disadvantage | Applicability |
|---|---|---|---|
| Neutron method | Non-contact, fast response, not affected by color or morphology | Radioactive, potential safety hazards | Suitable for high-precision detection under laboratory conditions |
| Microwave method | Non-contact, fast response | Sensitive to changes in material composition | Suitable for production environments where material composition is relatively stable |
| Near-infrared spectroscopy | Non-contact, fast response, high detection accuracy | Easily affected by material color and water vapor | Applicable to various sintering production lines, but environmental interference must be controlled |

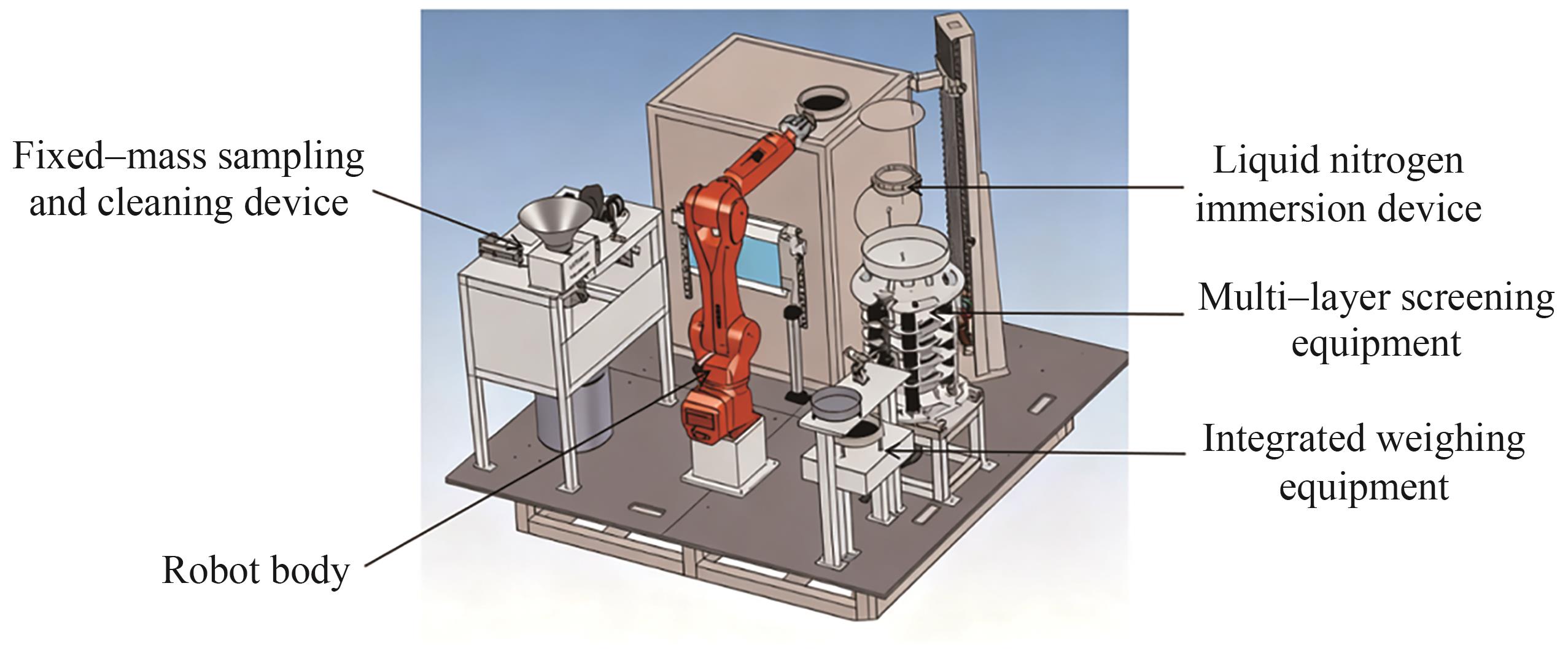

图8 机器人检测主机三维示意图[46]
Fig.8 3D view of robot detection host[46]

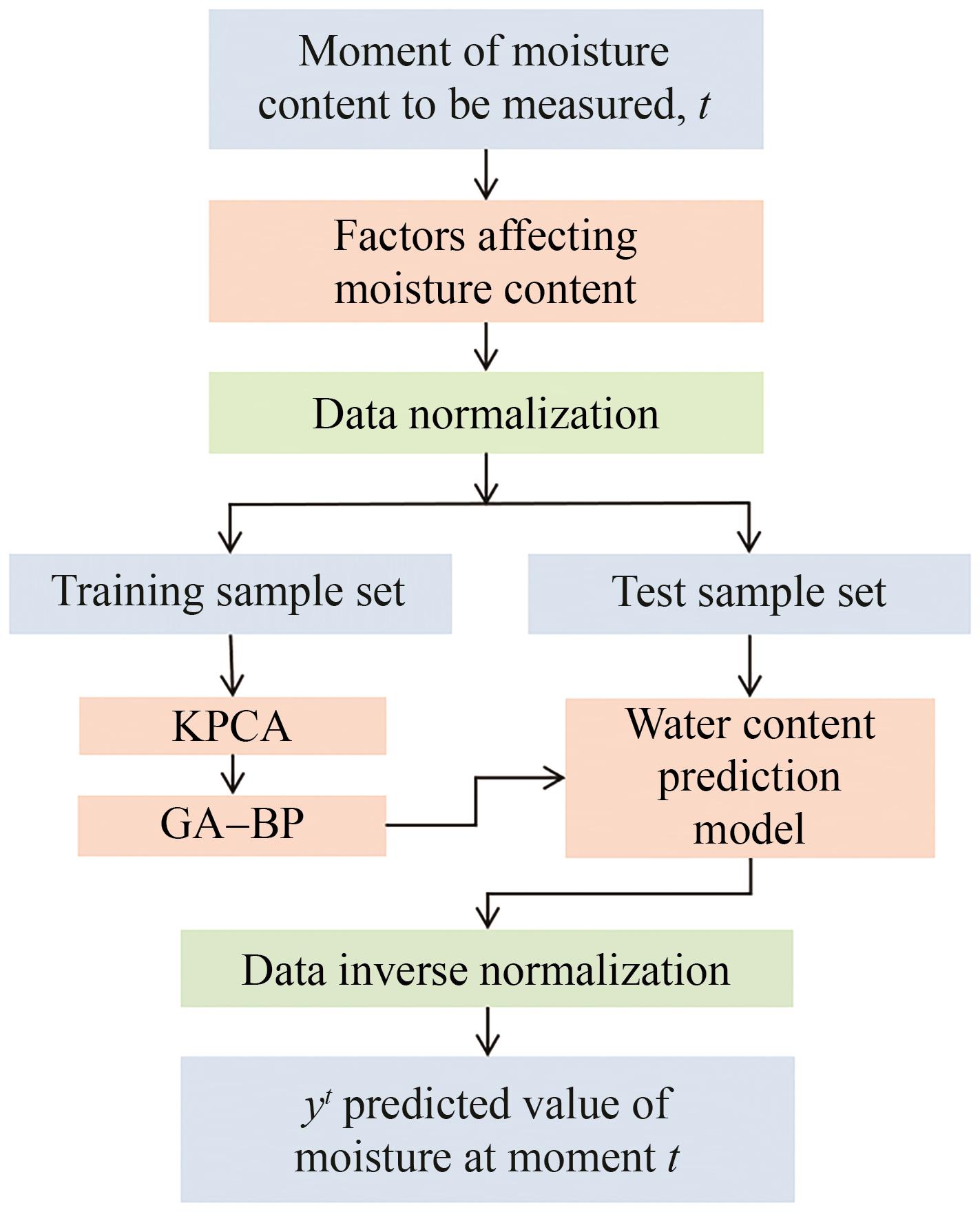

图9 水分预测策略步骤[51]
Fig.9 Moisture prediction strategy steps[51]

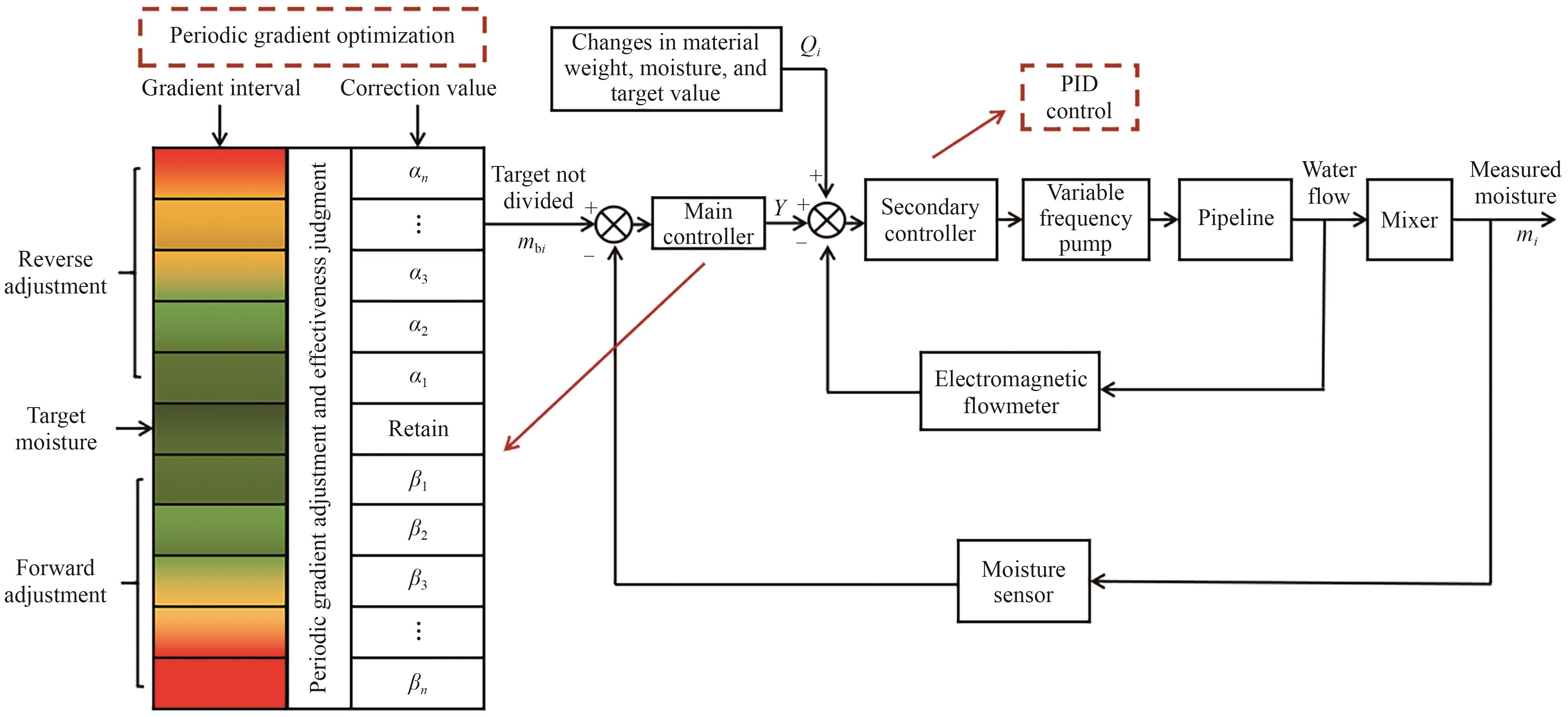

图10 周期梯度寻优控制策略的控制结构[54]
Fig.10 Control structure of periodic gradient optimization control strategy[54]

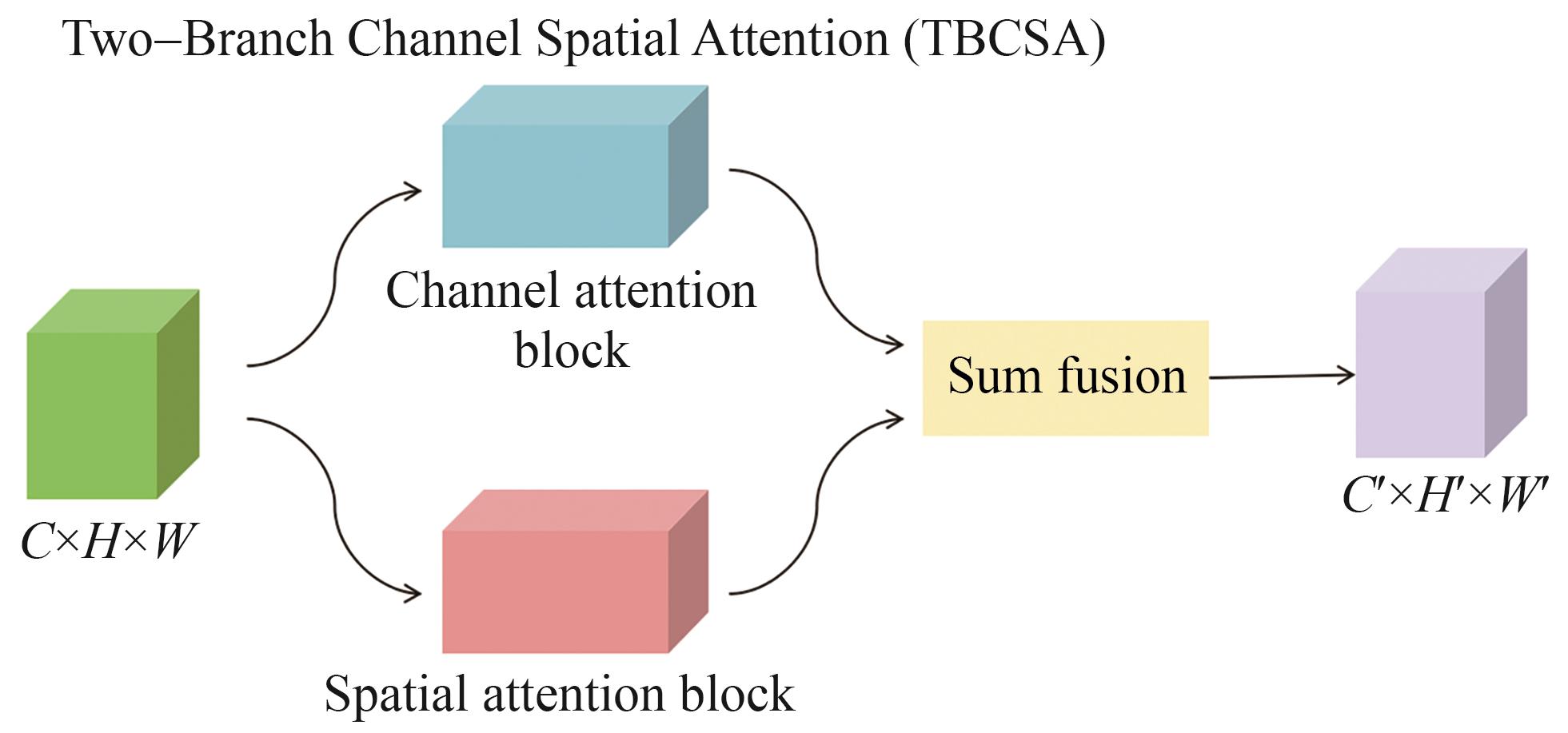

图11 双分支通道空间注意力模块[61]
Fig.11 Two-branch channel spatial attention module[61]

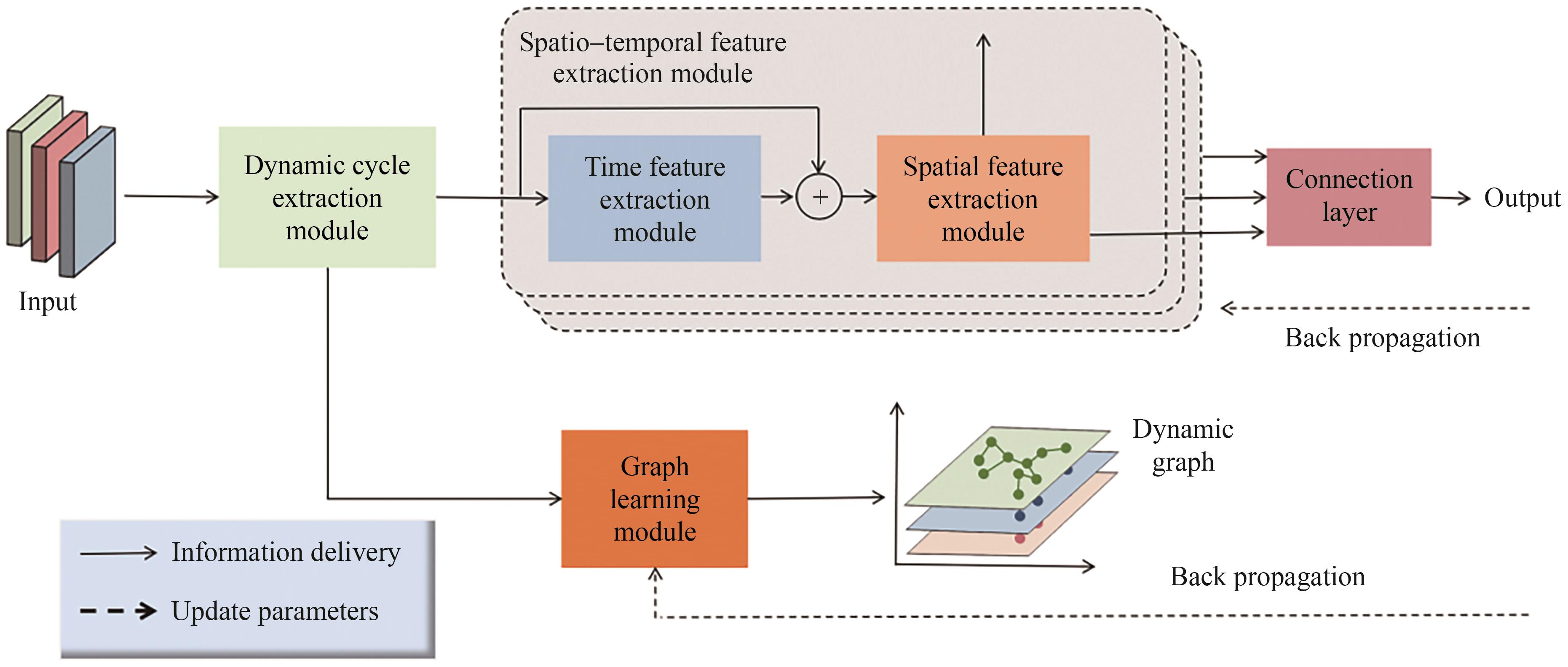

图12 基于动态图的烧结终点预测与控制结构[65]
Fig.12 BTP prediction and control structure based on dynamic graph[65]
| Main issue | Method | Key advantage | Ref. |
|---|---|---|---|
| Sintering endpoint is difficult to measure; BP network prone to local optima | GA-PSO optimized BP neural network model | Prediction accuracy superior to BP, GA-BP, and PSO-BP; significant error reduction | [ |
| Difficult to achieve fast and accurate modeling for sintering endpoint prediction | BP neural network-based prediction model | Fast training, low error, and adjustable parameters | [ |
| Missing key process parameters; slow training; prone to local extrema | Improved AdaBoost.RS extreme learning machine ensemble algorithm | Hit rate 97.4%, RMSE 0.58; quantifies key influencing factors | [ |
| Non-stationary and nonlinear data makes endpoint prediction difficult | CNN-Bi-LSTM fusion prediction model | The model achieved a goodness-of-fit of 0.89, with high prediction accuracy | [ |
| Traditional BTP prediction insufficient for complex reaction mechanisms and dynamic behavior; limited accuracy | Digital twin-driven DT-SVR/DT-LSTM | DT-SVR: RMSE reduced by 29%, R2 increased by 34%; DT-LSTM: RMSE reduced by 41%, R2 increased by 16% | [ |
| Traditional endpoint prediction models lack feature selection; limited accuracy | Feature selection using big data warehouse+process knowledge; GBDT modeling combined with expert rules | Prediction hit rate >88%; improved accuracy and generalization | [ |
| Feature redundancy reduces prediction accuracy; single learners prone to overfitting; ensemble model scale too large | Genetic algorithm for feature selection+RVFLNs ensemble modeling+sparse representation pruning | Pruning improves computational efficiency and model stability | [ |
| Intelligent control of sintering endpoint is difficult; multi-parameter but few labels | Multimodal large model (DeepSeek)+transfer learning+multi-objective optimization | High accuracy, strong robustness, enables dynamic optimization control | [ |
| Endpoint prediction ignores spatiotemporal characteristics; only single-step prediction | Encoder-decoder multi-step prediction model (temporal convolution+spatial attention+task decoder) | Captures spatiotemporal features, enables multi-step prediction, improves operational adjustment accuracy and sinter quality stability | [ |
| Prediction affected by multiple operating conditions and time-varying factors; model performance insufficient | XGBoost local model under online learning framework+KL-divergence-based similar sample selection | Improves prediction accuracy and adapts to multiple operating conditions in a reasonable time | [ |
表4 烧结终点预测方法对比
Table 4 Comparison of BTP prediction methods
| Main issue | Method | Key advantage | Ref. |
|---|---|---|---|
| Sintering endpoint is difficult to measure; BP network prone to local optima | GA-PSO optimized BP neural network model | Prediction accuracy superior to BP, GA-BP, and PSO-BP; significant error reduction | [ |
| Difficult to achieve fast and accurate modeling for sintering endpoint prediction | BP neural network-based prediction model | Fast training, low error, and adjustable parameters | [ |
| Missing key process parameters; slow training; prone to local extrema | Improved AdaBoost.RS extreme learning machine ensemble algorithm | Hit rate 97.4%, RMSE 0.58; quantifies key influencing factors | [ |
| Non-stationary and nonlinear data makes endpoint prediction difficult | CNN-Bi-LSTM fusion prediction model | The model achieved a goodness-of-fit of 0.89, with high prediction accuracy | [ |
| Traditional BTP prediction insufficient for complex reaction mechanisms and dynamic behavior; limited accuracy | Digital twin-driven DT-SVR/DT-LSTM | DT-SVR: RMSE reduced by 29%, R2 increased by 34%; DT-LSTM: RMSE reduced by 41%, R2 increased by 16% | [ |
| Traditional endpoint prediction models lack feature selection; limited accuracy | Feature selection using big data warehouse+process knowledge; GBDT modeling combined with expert rules | Prediction hit rate >88%; improved accuracy and generalization | [ |
| Feature redundancy reduces prediction accuracy; single learners prone to overfitting; ensemble model scale too large | Genetic algorithm for feature selection+RVFLNs ensemble modeling+sparse representation pruning | Pruning improves computational efficiency and model stability | [ |
| Intelligent control of sintering endpoint is difficult; multi-parameter but few labels | Multimodal large model (DeepSeek)+transfer learning+multi-objective optimization | High accuracy, strong robustness, enables dynamic optimization control | [ |
| Endpoint prediction ignores spatiotemporal characteristics; only single-step prediction | Encoder-decoder multi-step prediction model (temporal convolution+spatial attention+task decoder) | Captures spatiotemporal features, enables multi-step prediction, improves operational adjustment accuracy and sinter quality stability | [ |
| Prediction affected by multiple operating conditions and time-varying factors; model performance insufficient | XGBoost local model under online learning framework+KL-divergence-based similar sample selection | Improves prediction accuracy and adapts to multiple operating conditions in a reasonable time | [ |
| Company | Nangang | Pangang | Angang | Laigang | Tanggang | Baogang |
|---|---|---|---|---|---|---|
| Effective area/m2 | 360 | 260 | 360 | 265 | 360 | 600 |
| Air leakage rate/% | 53.4 | 46.67 | 46.5 | 45.8 | 41.57 | 35.25 |
表5 部分钢铁企业烧结机漏风率
Table 5 Leakage rates of sintering machines at selected steel plants
| Company | Nangang | Pangang | Angang | Laigang | Tanggang | Baogang |
|---|---|---|---|---|---|---|
| Effective area/m2 | 360 | 260 | 360 | 265 | 360 | 600 |
| Air leakage rate/% | 53.4 | 46.67 | 46.5 | 45.8 | 41.57 | 35.25 |

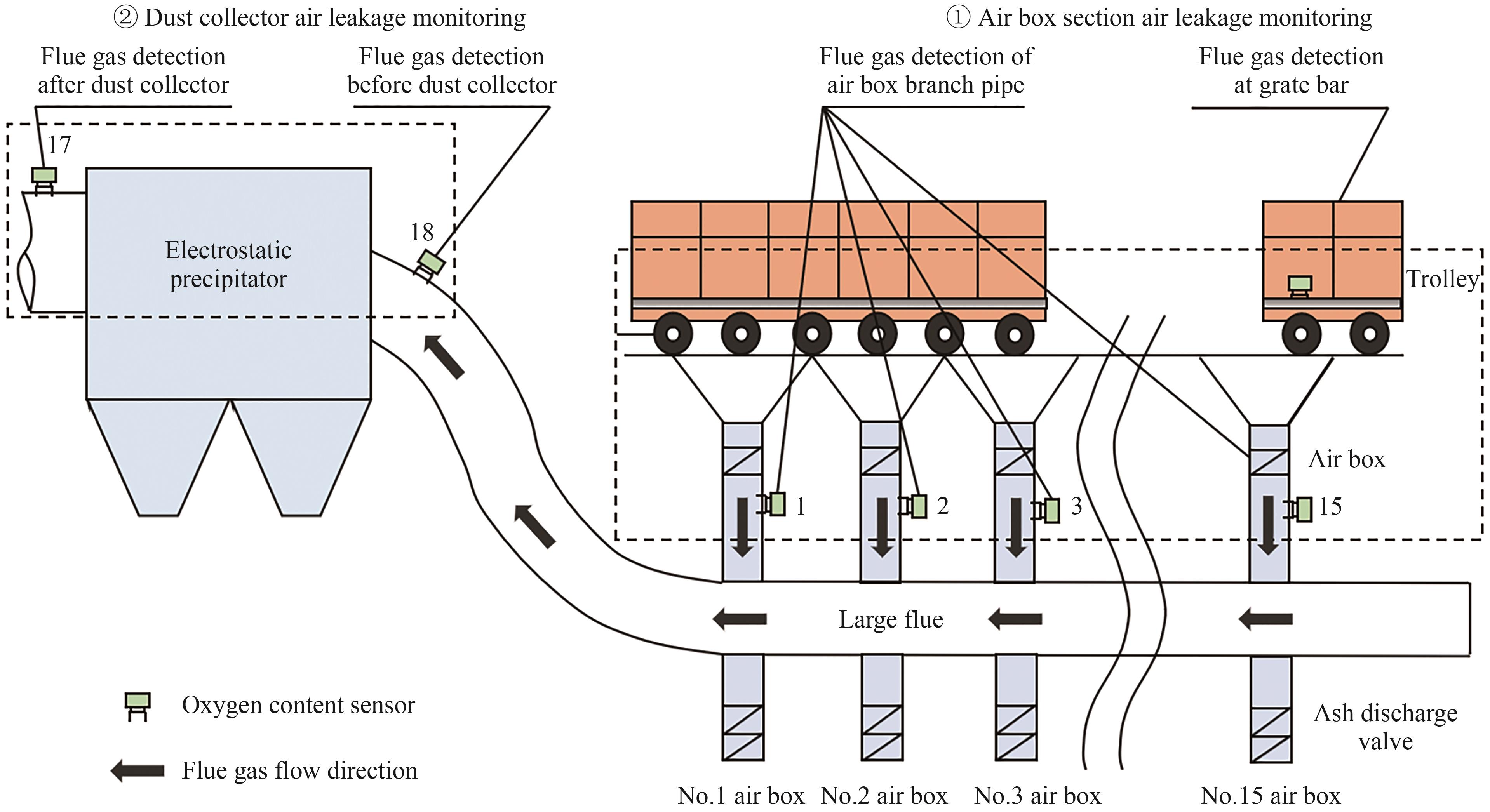

图13 在线漏风监测系统的设计方案[78]
Fig.13 Online leakage monitoring system design[78]

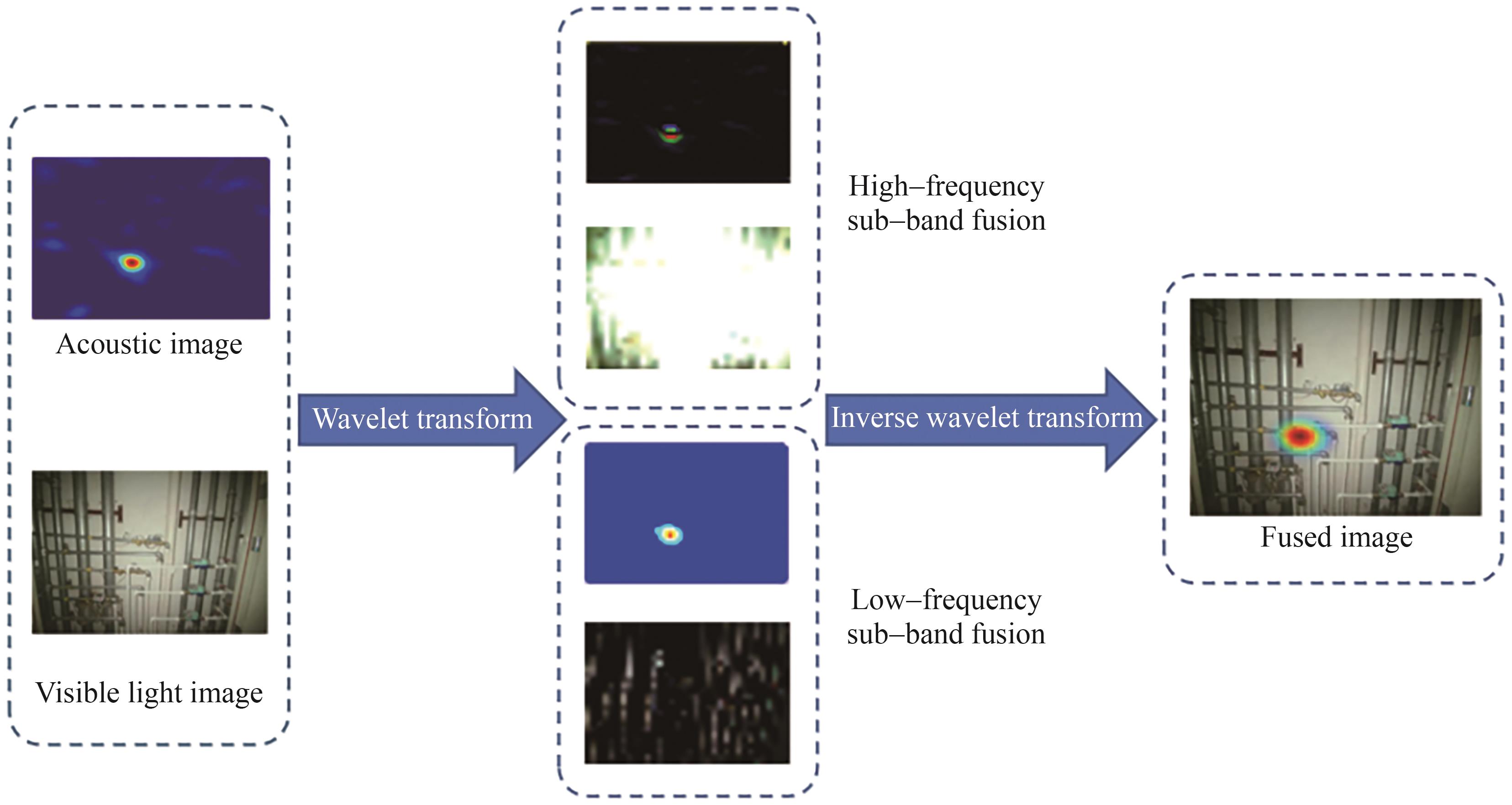

图14 基于MSA的声学图像和可见光图像融合算法实现过程[81]
Fig.14 Implementation process of acoustic image and visible light image fusion algorithm based on MSA[81]

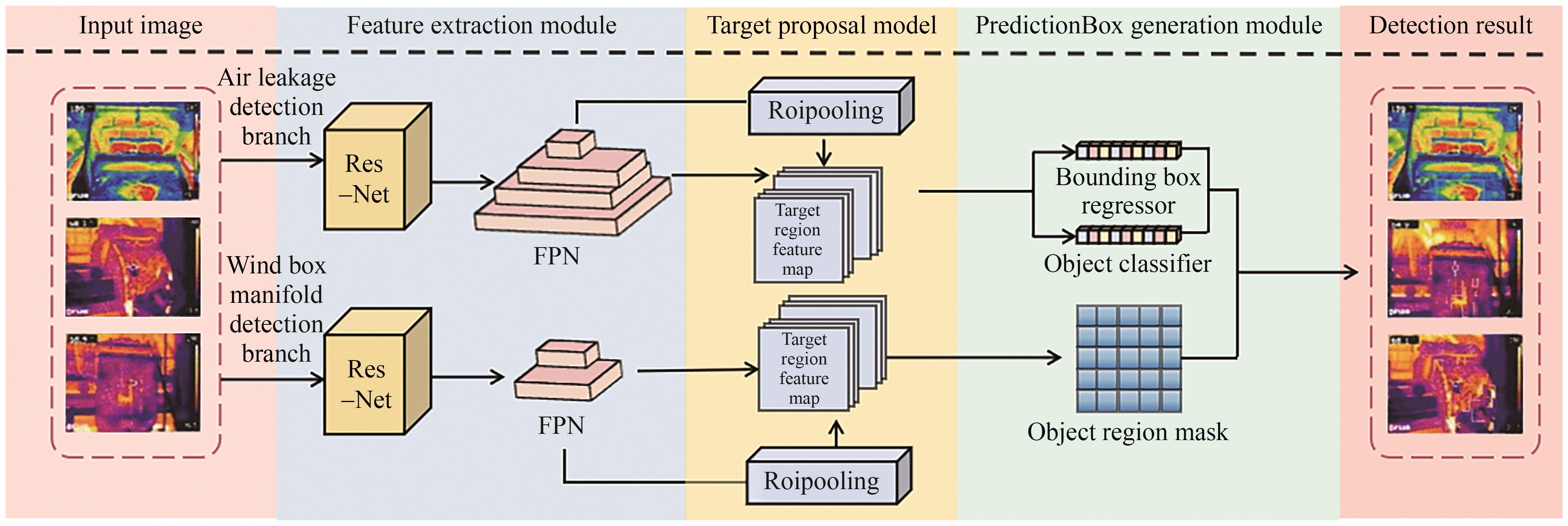

图15 风箱漏风点检测算法网络结构[83]
Fig.15 Network structure of the wind box air leakage detection algorithm[83]
